| Feature | K1 | K2 | K3 | K4 | K5 |
|---|---|---|---|---|---|
| Model Type | All-in-One | All-in-One | All-in-One | All-in-One | All-in-One |
| Product Size | 688 × 299 × 50 mm | 828 × 299 × 50 mm | 1078 × 358 × 50 mm | 1348 × 488 × 60 mm | 1508 × 538 × 60 mm |
| Material | Aluminium Body | Aluminium Body | Aluminium Body | Aluminium Body | Aluminium Body |
| Output Wattage | 7W – 12W | 15W – 22W | 25W – 30W | 40W – 50W | 50W – 60W |
| Color Temperature | 3000K / 6000K | 3000K / 6000K | 3000K / 6000K | 3000K / 6000K | 3000K / 6000K |

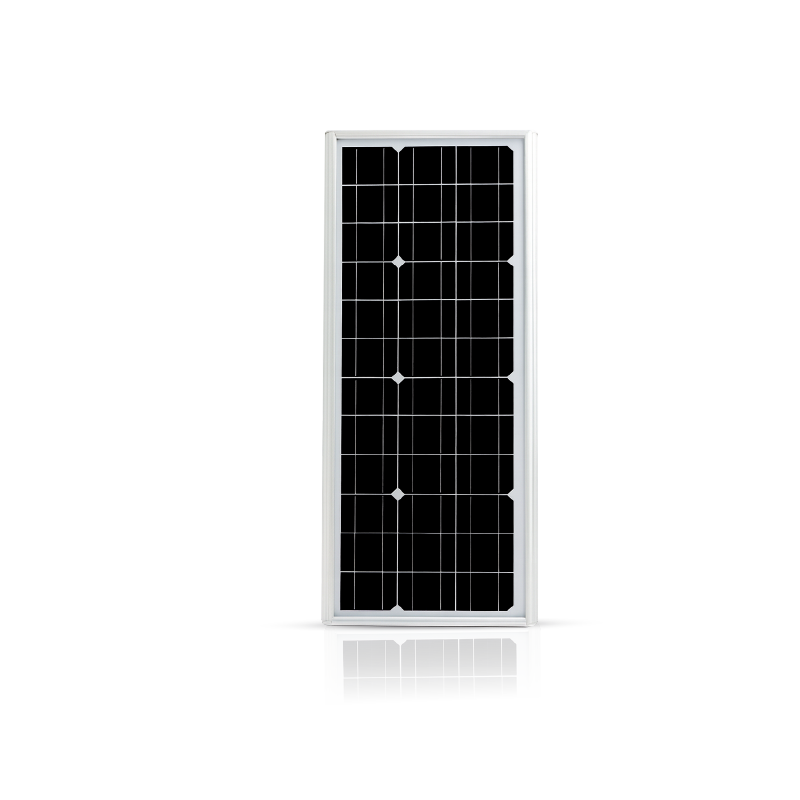

| Solar Panel Type | Monocrystalline | Monocrystalline | Monocrystalline | Monocrystalline | Monocrystalline |
| Solar Panel Voltage | 18V | 18V | 18V | 33V | 33V |
| Solar Panel Wattage | 30W | 40W | 60W | 100W | 130W |
| LED Package | 3030 OSRAM | 3030 OSRAM | 3030 OSRAM | 3030 / 5050 OSRAM | 3030 / 5050 OSRAM |
| Lumens Output | 980 – 1680 lm | 2100 – 3080 lm | 3500 – 4200 lm | 5600 – 7000 lm | 7000 – 8400 lm |
| Charge Controller | PWM / MPPT | PWM / MPPT | PWM / MPPT | PWM / MPPT | PWM / MPPT |
| Battery Type & Voltage | 12.8V LFP | 12.8V LFP | 12.8V LFP | 25.6V LFP | 25.6V LFP |
| Battery Capacity | 6Ah – 12Ah | 18Ah – 24Ah | 24Ah – 30Ah | 36–42Ah / 18–24Ah | 42–48Ah / 24–30Ah |
| IP Rating | IP65 | IP65 | IP65 | IP65 | IP65 |
| Installation Height | 4 m | 5 m | 6 m | 7 m | 8 m |
| Motion Sensor | Yes | Yes | Yes | Yes | Yes |
| Working Mode | Motion Based: 100% Brightness, 33% Idle Mode (All Models) |
All in One Solar Lights

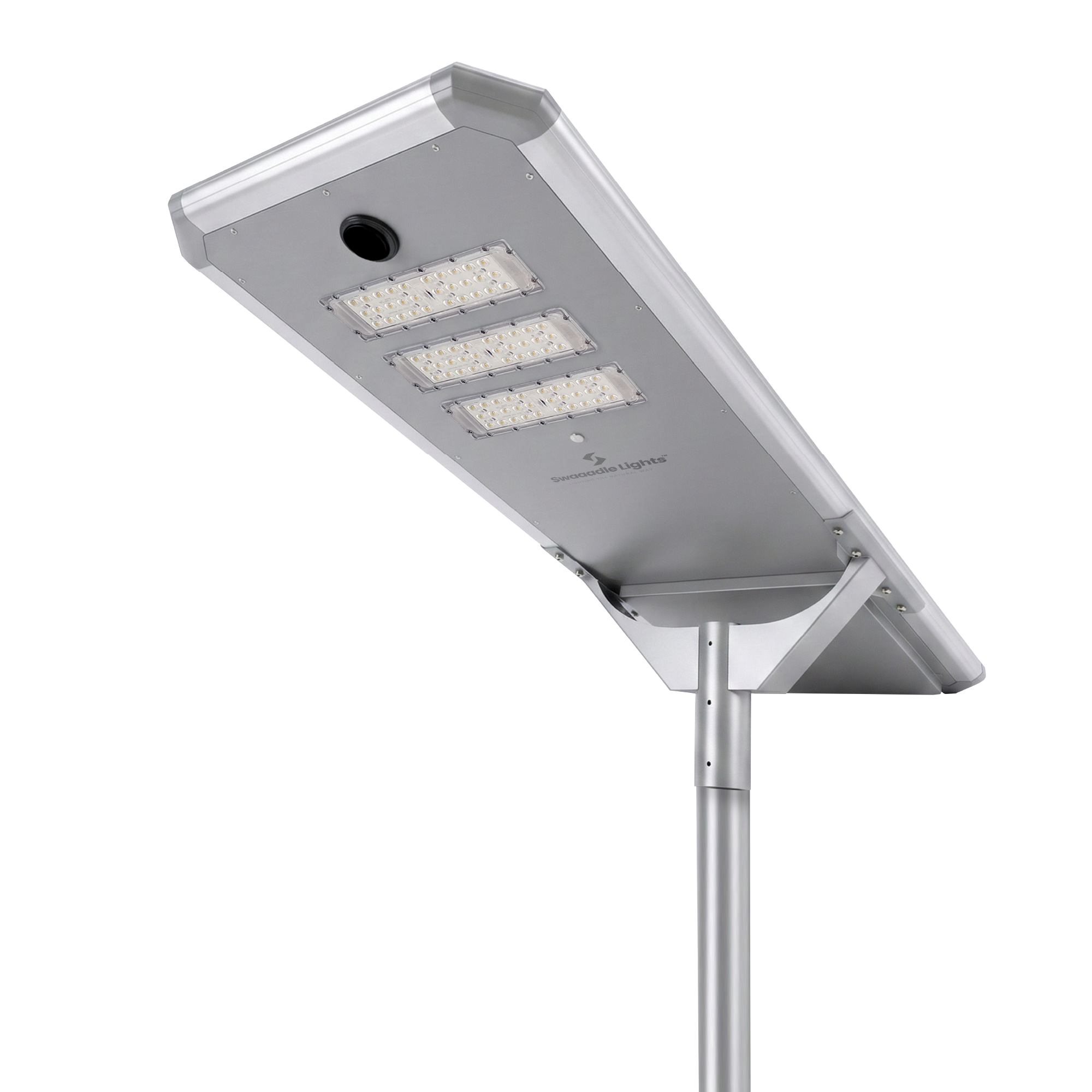

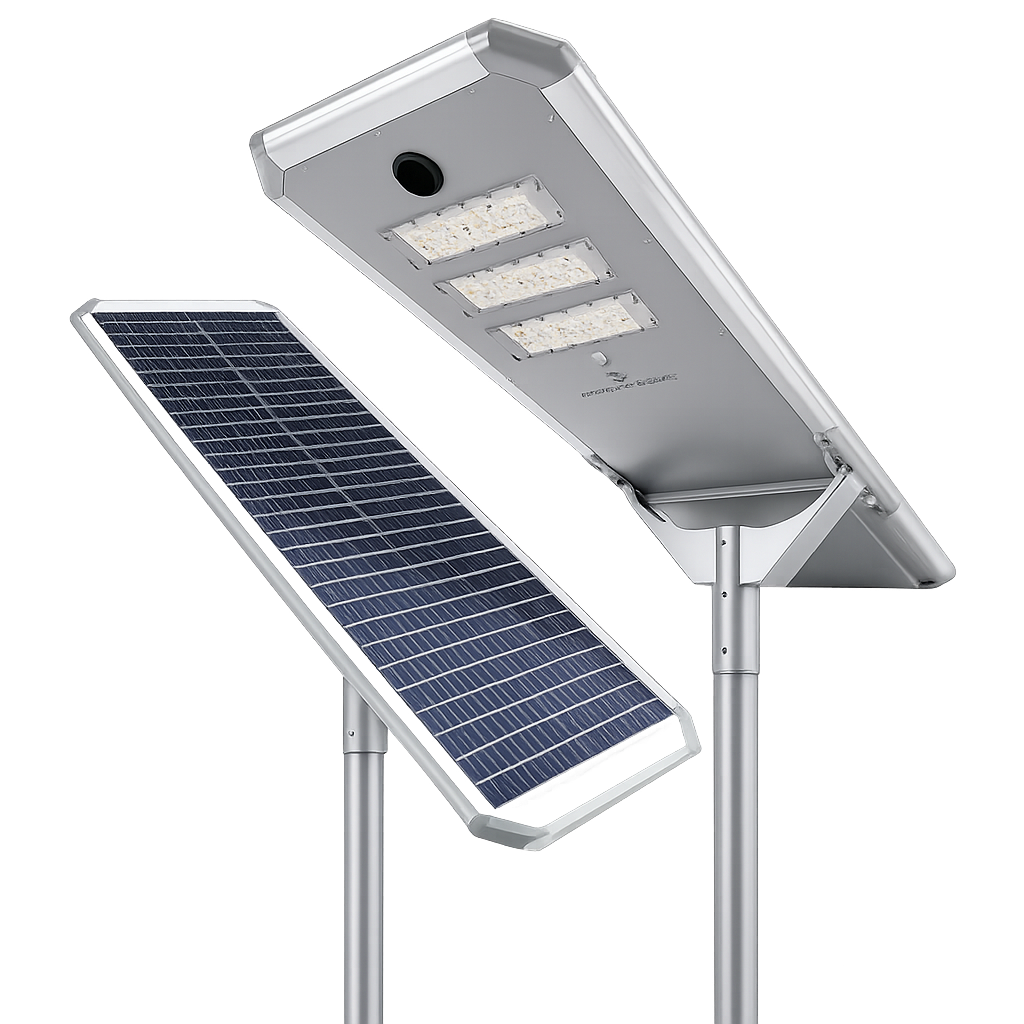

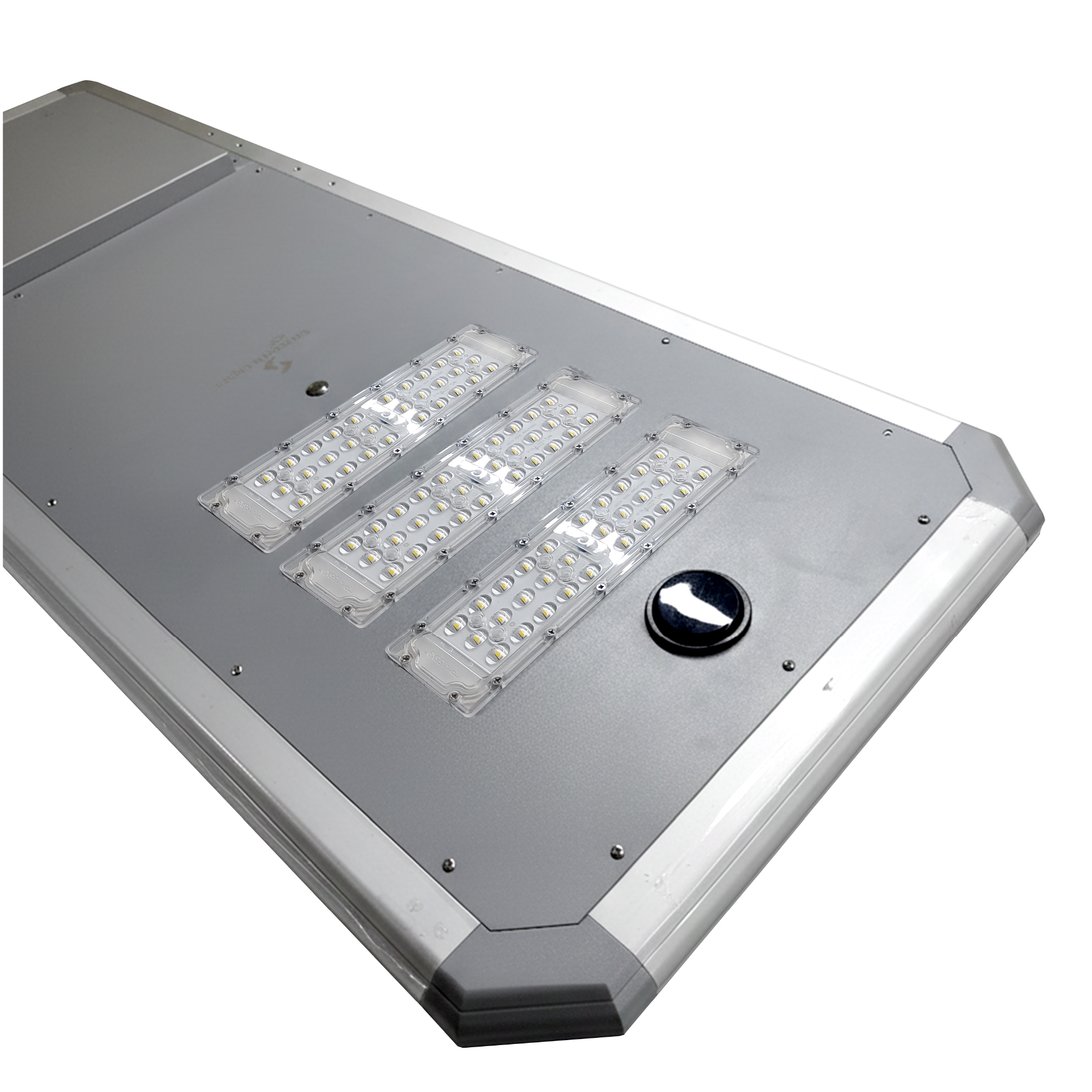

All in One Street Light/ Kathir Series
+ Free ShippingLight up large outdoor spaces with the Kathir Series All-in-One Solar Street Lights – a high-performance lighting solution built for streets, highways, and commercial applications. Designed with premium aluminium body, powerful monocrystalline solar panels, and advanced LFP battery technology, the Kathir Series delivers ultra-bright illumination, long-lasting performance, and zero electricity cost.
With smart motion sensing, high-lumen output, and reliable IP65 protection, it ensures maximum efficiency, safety, and durability in all weather conditions. Perfect for modern infrastructure and energy-saving outdoor lighting needs.
✔ High Lumen Output up to 8400 Lumens
✔ Ideal for Streets, Highways & Large Outdoor Areas
✔ Zero Electricity Cost – 100% Solar Powered
✔ Smart Motion Sensor for Energy Saving
✔ Durable Aluminium Body – Long Life Performance
✔ IP65 Weatherproof – Works in All Conditions
✔ Easy Installation – No Wiring Required
| Kathir Series output Wattage | k1/7w-12w, k2/15w-22w, k3/25w-30w, k4/40w-50w, k5/50w-60w |
|---|
